PRODUCT  >   New high light efficacy LED modules

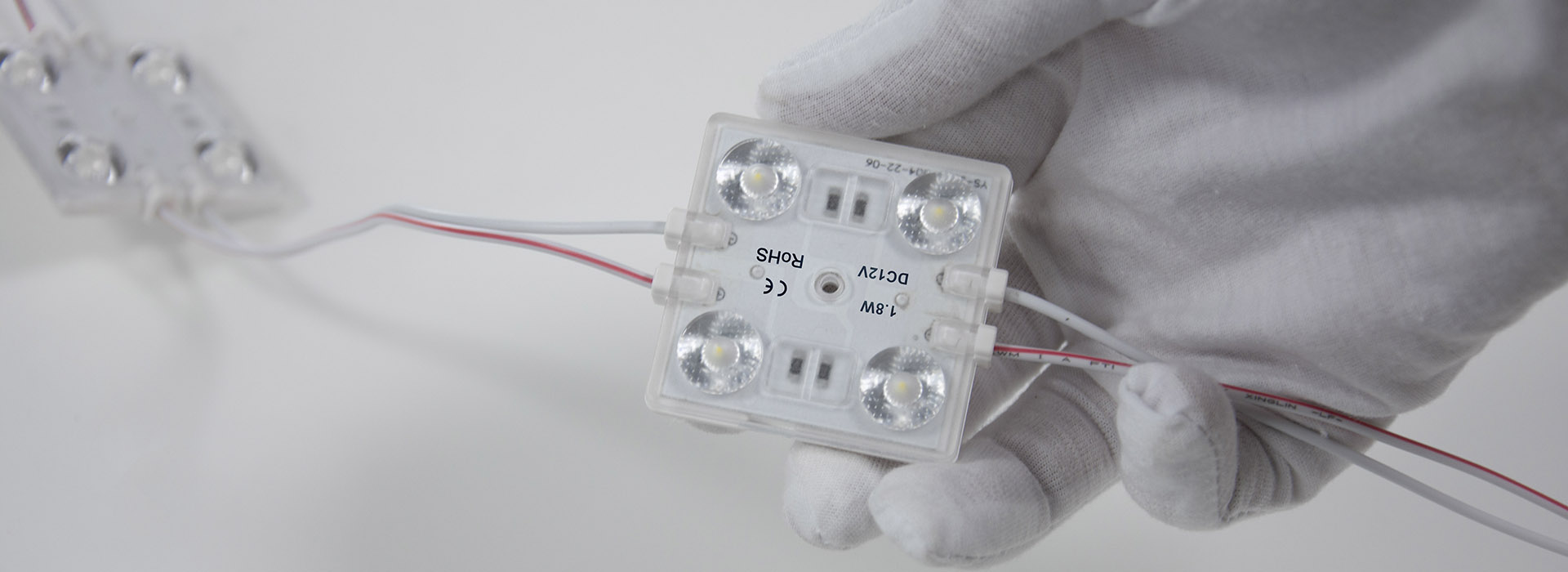

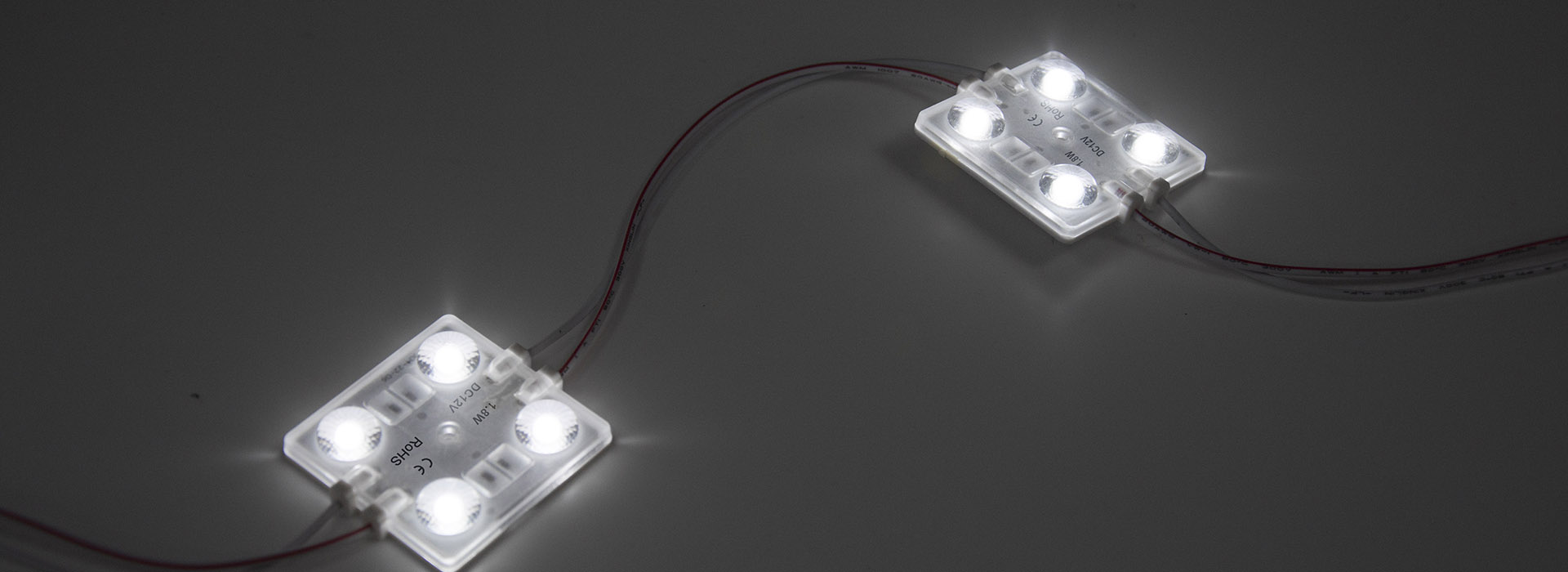

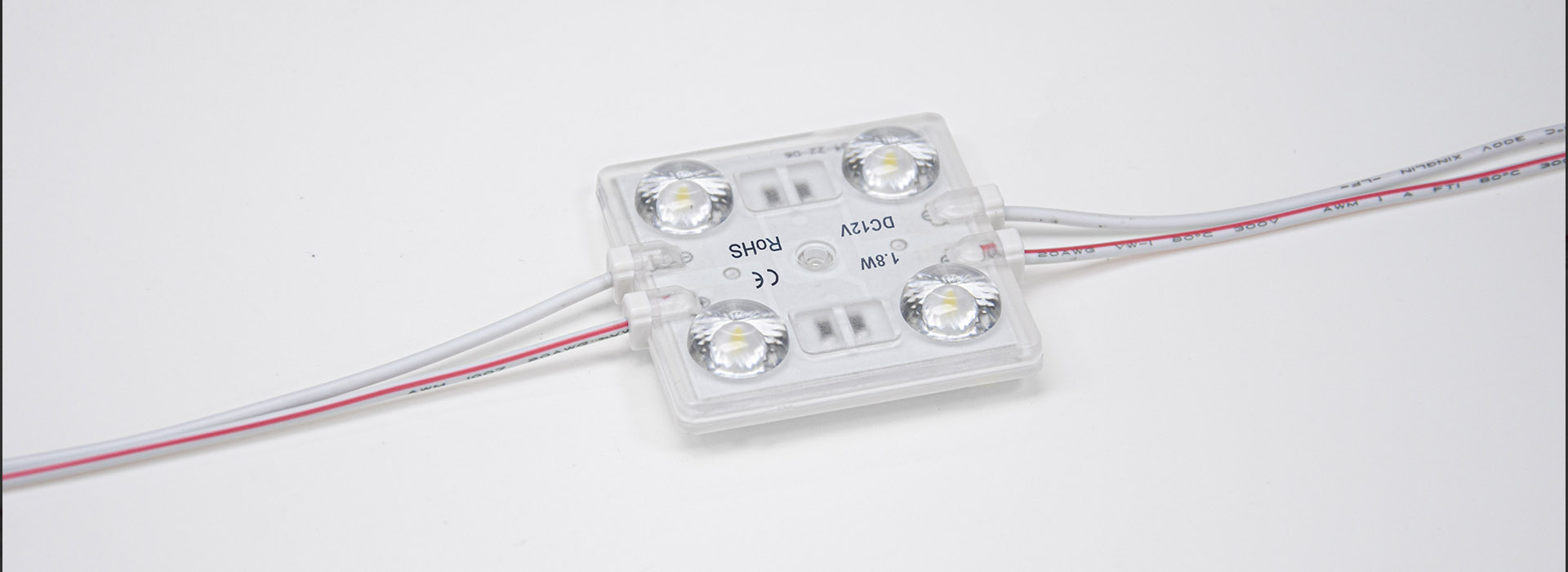

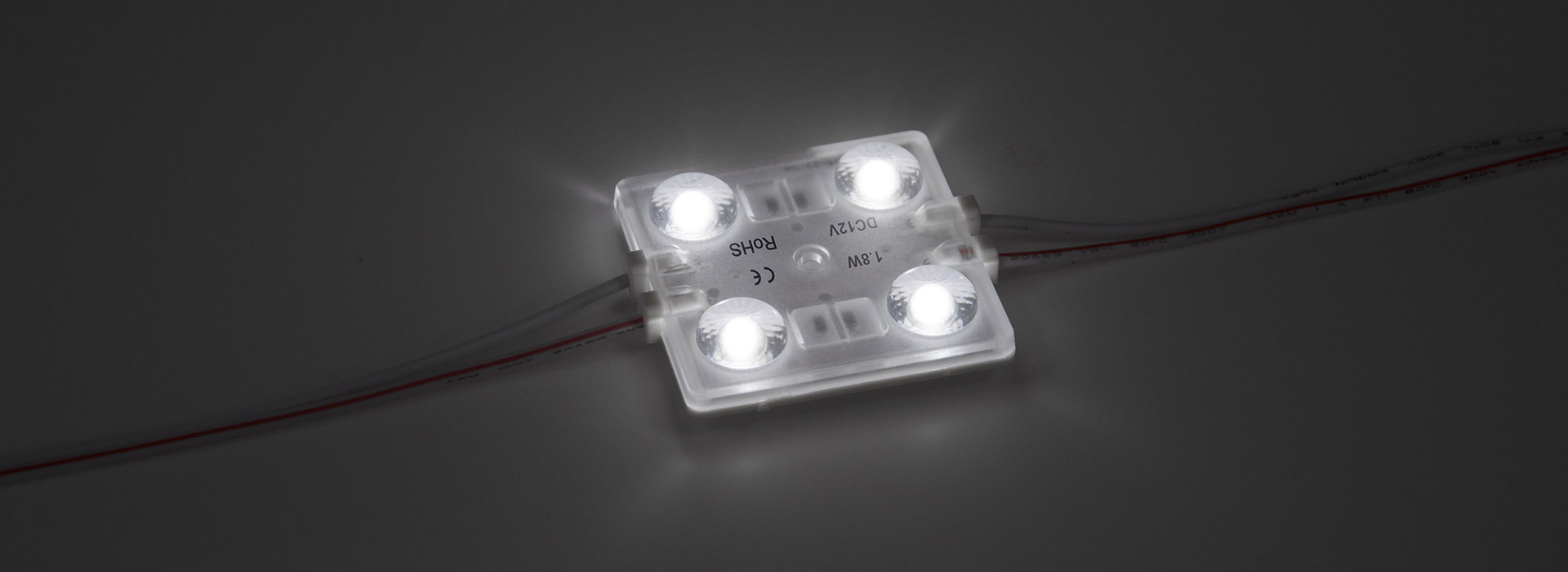

YS-MB7341

▪ Adopting high efficiency SMD2835, Efficiency up to 140lm/w

▪ Large beam angle 175 degree, uniform light

▪ Using aluminum PCB board, good heat dissipation

▪ Injection on the back of the module, the module thickness is thin, Light-weight

▪ 3M adhesive backing for easy install

▪ ABS Injection Constant Voltage design


SPECIFICATIONS

LED Qty4 LEDs
LED typeSMD2835
Input Voltage (V)DC12V
Luminous Flux (LM)243lm
Power(W)1.8W
Bean  Angle (°)175°
IP rateIP67
Dimensions 43*47*7.8  (mm)

Standard cascade (pcs)

20pcs


COLOR OPTION

CERTIFICATION
