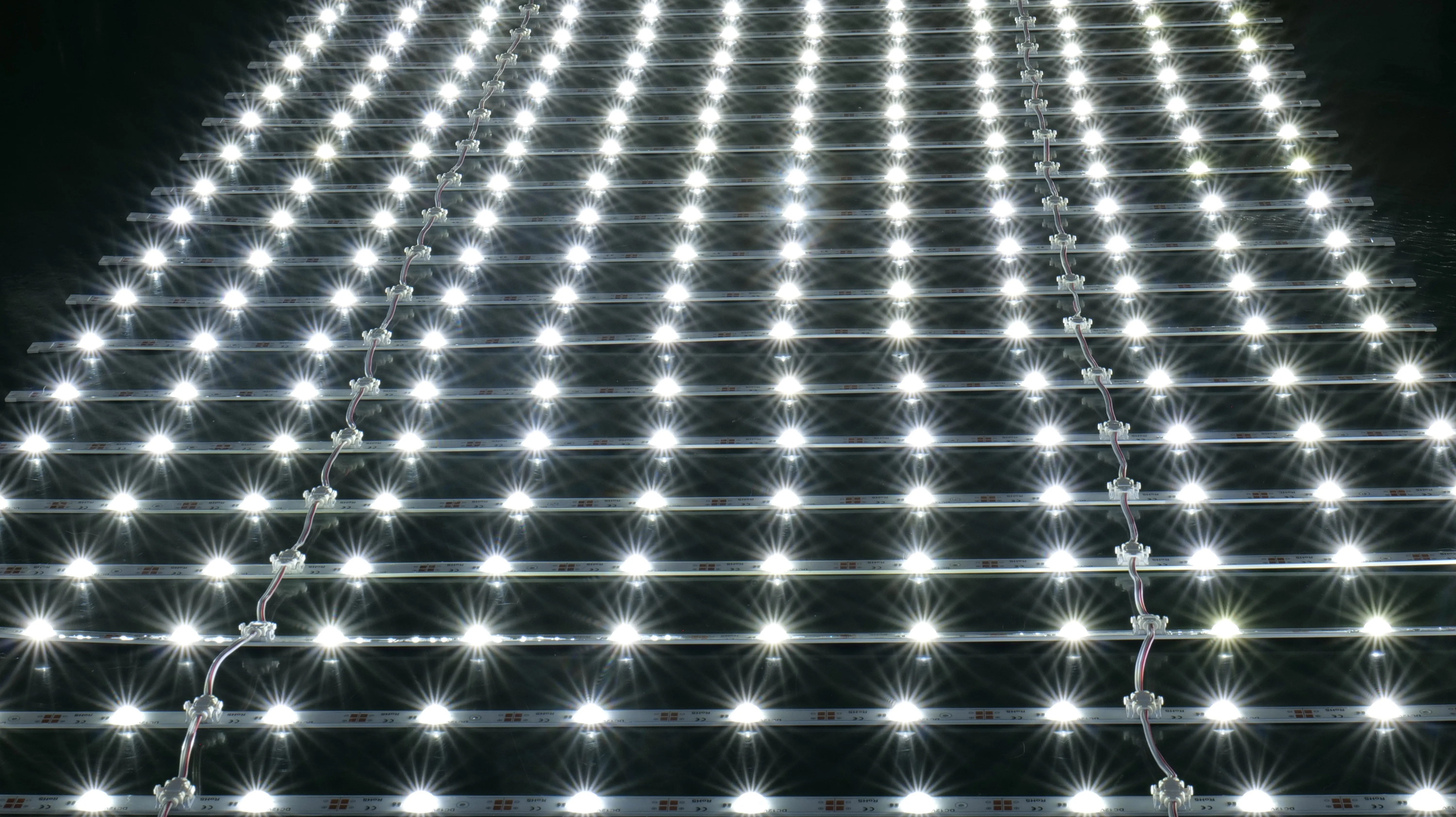

Waterproof LED diffuse roller shutter bar is divided into single color diffuse roller shutter bar and dual color diffuse roller shutter bar.

Product Features

l This product utilizes an aluminum base plate, extruded profiles, and a silicone waterproof structure, providing excellent heat dissipation and waterproofing.

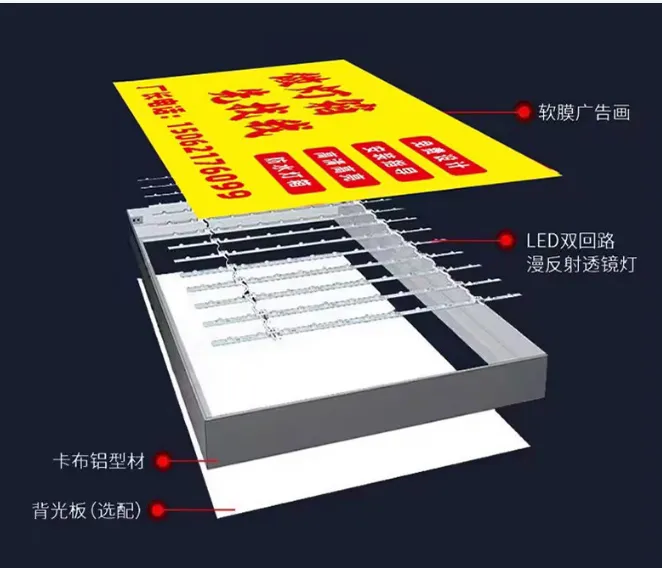

l It is compatible with light boxes of varying thicknesses and uses a roller shutter to connect the light strips, with a center distance of 100/150mm.

l The standard terminal cable comes in 20 pieces per roll. It features pluggable waterproof terminals that can be connected in either forward or reverse directions and can be removed to replace a waterproof rigid light strip.

l It is easy to install with pre-attached adhesive or screwed plugs at both ends.

l This product is CE and RoHS certified.

 YS-DF87310-148

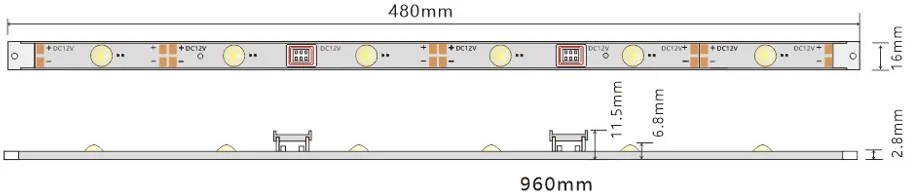

IP67, SMD2835,  DC12V, The distance of LED bar:100mm, LED length: 480mm, 6W per piece

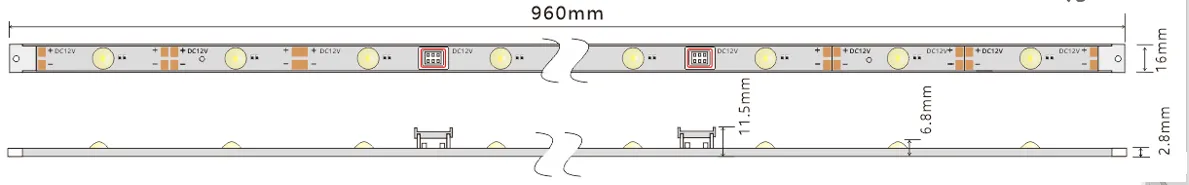

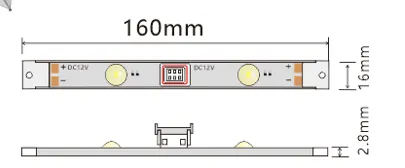

The normal structure: 3 types: 160mm,480mm,960mm

Product Advantages:

l Solve installation and usage issues with traditional LED modules, roller shutter lights, and tube lights:

l Easy to arrange, high power, and thick, making installation easier and reducing costs.

l Solve waterproofing, anti-yellowing, and durability issues.

l Solve issues with light efficiency and brightness uniformity

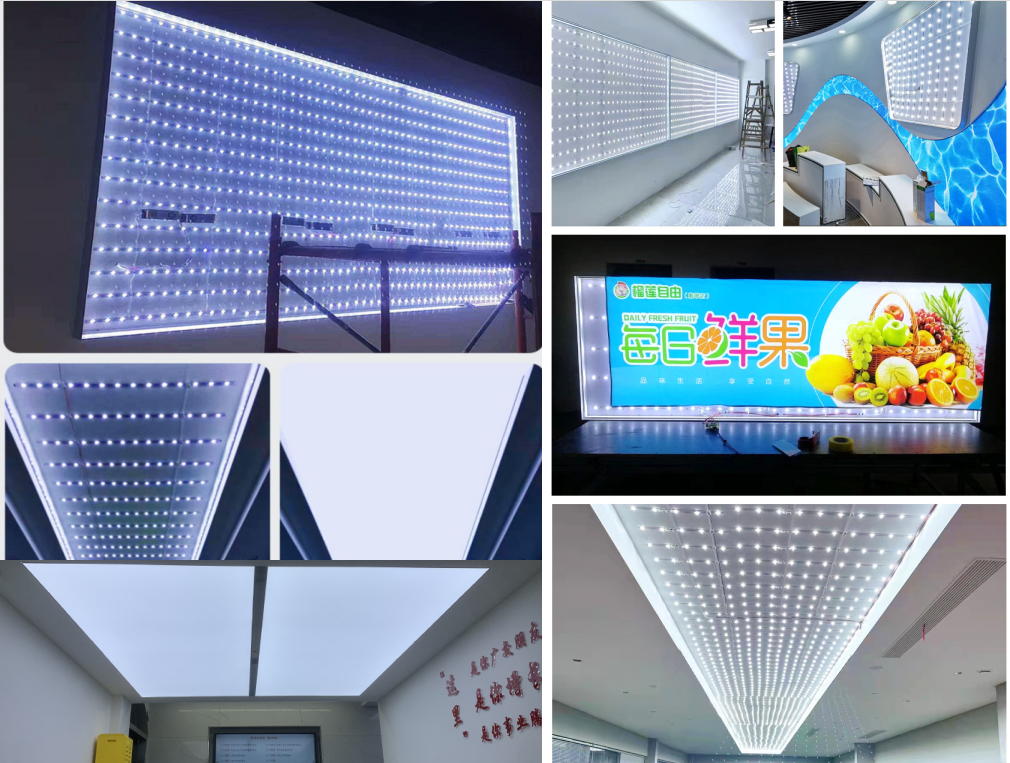

Application:

1,Kabu light box

2, Outdoor shopping malls, billboards, ceiling

3, Airports, subway stations, bus stops, etc.
